SUV H/T

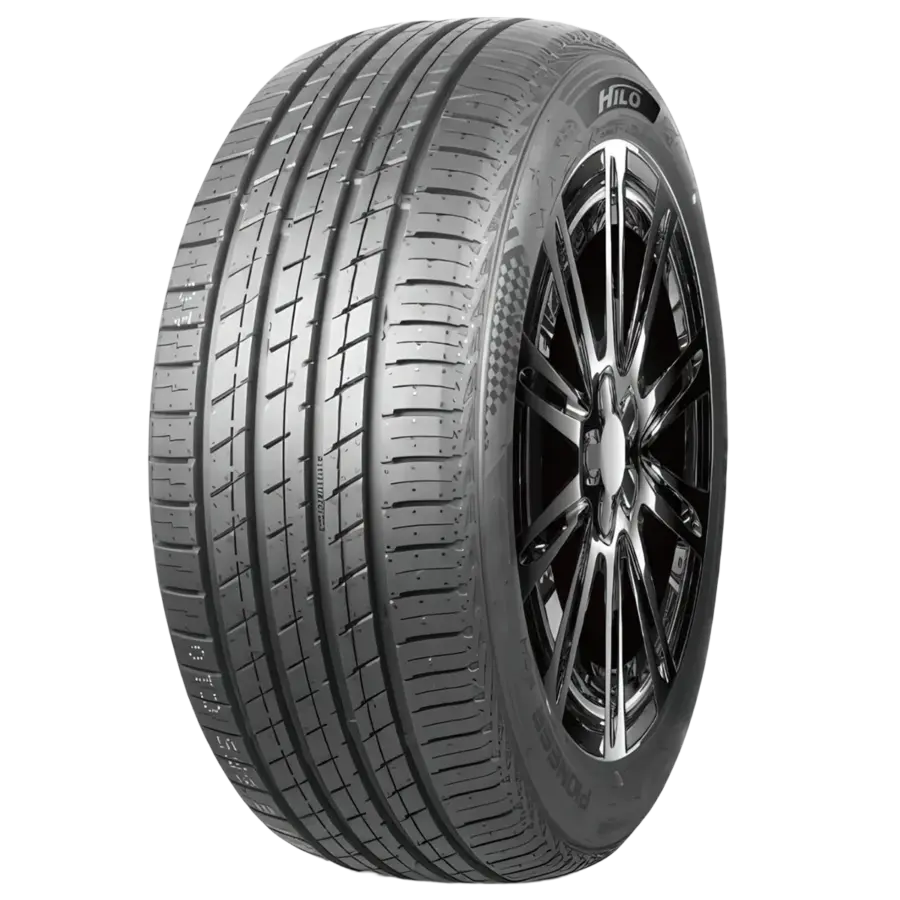

HILO PIONEER PC4

A highway-terrain SUV pattern for owners who spend their time on sealed roads. Four straight grooves handle water, multi-siping keeps traction on changing surfaces, and an improved footprint targets fuel consumption and even wear. 21 sizes, 17" to 20".

Sizes
21
Category
SUV & 4x4
Find a stockist Wholesale enquiry

Built for

  1. 01 Optimised casing construction ensures a comfortable ride
  2. 02 Four straight tread grooves guarantee excellent water drainage
  3. 03 Multi-siping design provides outstanding Traction on various road surfaces.
  4. 04 Improved footprint promises less Fuel consumption and remarkable tyre life.

Sizes & specifications

21 sizes

17 inch

Tyre size Load index / speed symbol Std. rim inch Section width mm Overall diameter mm Max load kg Max load lbs Max pressure kPa Max pressure psi UTQG Rolling resistance Wet grip Noise dB
225/65R17 102H 6½J 228 724 850 1874 300 44 520 A A C C 71
215/60R17 96V 6½J 221 690 710 1565 300 44 520 A A C C 71
225/60R17 103V XL 6½J 228 702 875 1929 340 50 520 A A C C 72
235/65R17 108V XL 7J 240 738 1000 2205 340 50 520 A A C C 72

18 inch

Tyre size Load index / speed symbol Std. rim inch Section width mm Overall diameter mm Max load kg Max load lbs Max pressure kPa Max pressure psi UTQG Rolling resistance Wet grip Noise dB
235/65R18 110H XL 7J 240 763 1060 2337 340 50 520 A A C C 72
215/50R18 92V 7J 226 673 630 1389 300 44 520 A A D C 71
215/55R18 99V XL 7J 226 693 775 1709 340 50 520 A A C C 72
225/55R18 98V 7J 233 705 750 1653 300 44 520 A A C C 71
225/60R18 100V 6½J 228 727 800 1764 300 44 520 A A C C 71
235/50R18 101V XL 7½J 245 693 825 1819 340 50 520 A A C C 72
235/55R18 104V XL 7½J 245 715 900 1984 340 50 520 A A C C 72
235/60R18 107V XL 7J 240 739 975 2149 340 50 520 A A C C 72
255/55R18 109V XL 8J 265 737 1030 2271 340 50 520 A A C C 73
245/60R18 105V 7J 248 751 925 2039 300 44 520 A A C C 71

19 inch

Tyre size Load index / speed symbol Std. rim inch Section width mm Overall diameter mm Max load kg Max load lbs Max pressure kPa Max pressure psi UTQG Rolling resistance Wet grip Noise dB
235/55R19 105V XL 7½J 245 741 925 2039 340 50 520 A A C C 72
245/55R19 103V 7½J 253 753 875 1929 300 44 520 A A C C 71
255/50R19 107V XL 8J 265 739 975 2149 340 50 520 A A C C 73
265/50R19 110V XL 8½J 277 749 1060 2337 340 50 520 A A C C 73

20 inch

Tyre size Load index / speed symbol Std. rim inch Section width mm Overall diameter mm Max load kg Max load lbs Max pressure kPa Max pressure psi UTQG Rolling resistance Wet grip Noise dB
235/50R20 104V XL 7½J 245 744 900 1984 340 50 520 A A C C 72
255/45R20 105V XL 8½J 255 738 925 2039 340 50 520 A A C C 73
255/55R20 110V XL 8J 265 788 1060 2337 340 50 520 A A C C 73

Source: HILO catalogue 2025.12 (Shandong Xinghongyuan Tire Co., Ltd). Rolling resistance, wet grip and noise are EU tyre-label grades. Availability in Australia varies — check current stock with Cypress Tyres.
